Learn how to install the Dialogue Wheel for Yarn Spinner Package.
You can purchase Dialogue Wheel for Yarn Spinner from the Yarn Spinner Itch Store.
To use the Dialogue Wheel for Yarn Spinner package in Unity, you'll also need to make sure you've got the Yarn Spinner for Unity package installed.
Once you've purchased it, download the package from the store. It will be in the form of a .unitypackage file. To install the package, open the Unity project that you want to add it to, and open the the Assets menu -> Import Package -> Custom Package...

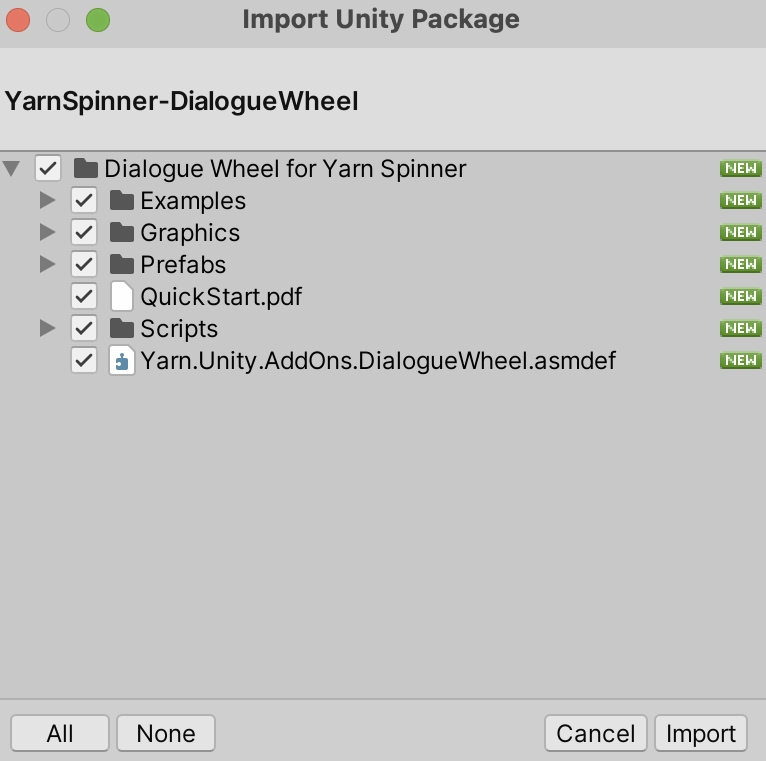

You'll then be able to select the .unitypackage file for Dialogue Wheel for Yarn Spinner on your file system, and click Open. This will present the Import Unity Package window:
Click the Import button, and Dialogue Wheel for Yarn Spinner will be imported into your project.
Next, check out the guides on Using Six-Segment Dialogue Wheel, or Using Auto-Layout Dialogue Wheel, as well as
Learn how to use the Automatic-Layout Dialogue Wheel, from the Dialogue Wheel for Yarn Spinner Add-On Package.
The Automatic-Layout Dialogue Wheel provides a dialogue wheel with a simple graphical appearance, and can—theoretically—support as many options as you'd like, automatically adjusting to display them.
To use the Automatic-Layout Dialogue Wheel make sure your Unity project has the Yarn Spinner package installed, and the install the Dialogue Wheel for Yarn Spinner package.
Then, create a new Dialogue Runner in your Hierarchy:
Then, in the Project pane, create a new Yarn Project asset:
And create a new Yarn Script to use:
Name both the Yarn Project, and the Yarn Script, something appropriate:
Open the Yarn script to write your story. Then save the Yarn script and return to Unity.
We've provided an initial sample story here, if you want to test things out.
Back in Unity, choose the Dialogue Runner that you added to the Hierarchy, right-click it and choose Prefab -> Unpack. This will allow you to modify the contents of the (former) prefab, in order to add the Automatic-Layout Dialogue Wheel as a Dialogue View.
With the Dialogue Runner selected in the Hierarchy, drag the Yarn Project that you created from the Project pane into the Yarn Project slot in the Dialogue System's Inspector:
Next, locate the Automatic-Layout Dialogue Wheel prefab, supplied with this add-on, and drag it from the Project pane, so it's below the Canvas in the Hierarchy:
Right-click on the Options List View in the Hierarchy, and choose Delete. You won't need that view, as you'll be displaying a wheel, instead of a list. To make the Dialogue System aware of the Automatic-Layout Dialogue Wheel, select it (the Dialogue System) in the Hierarchy, and drag the Automatic-Layout Dialogue View from the Hierarchy into the Element 1 slot of the Dialogue Views section in the Inspector:
If you save your scene and run it, your Automatic-Layout Dialogue Wheel should now be working!
To customise the supplied wheel, select the Wheel Graphic in the Hierarchy:
And look to the Inspector:
Here, on the Wheel Graphic component, you can customise a variety of things, such as the material, color, inner radius, and density of the wheel. For example, if you set the Density field to 6, as we did above, your wheel will become a hexagon:
To customise the way each option is displayed around the wheel, select the Automatict Wheel Option View under Automatic-Layout Dialogue Wheel prefab:
And look to the Inspector:
You can tweak some of the fields here to customise the options that are displayed around the wheel. Specifically, you might want to customise the following.
On the Automatic Wheel Option View:
Normal Color — the color of each option that's not currently highlighted or disabled
Disabled Color — the color of each option that's displayed, but cannot be chosen
Highlighted Color — the color of the option that's currently selected (but not yet chosen)
Text/Graphic Highlight Mode — whether each option is immediately highlighted when it's selected, or whether they crossfade between
Crossfade Duration — the duration of the crossfade, if crossfading
On the Wheel Option Graphic:
Material — the Material used for circle graphic displayed near each option
Width — the size of the circle graphic displayed near each option
For example, if you wanted to highlight selected options in green, and crossfade between them, you could set the following:
Which would result in something like this:
And that's everything you need to know to use the Automatic-Layout Dialogue Wheel! Review the Dialogue Wheel Examples for more.
Dialogue Wheel for Yarn Spinner ships with two example scenes, showcasing the flexibiltiy of the Dialogue Wheel.

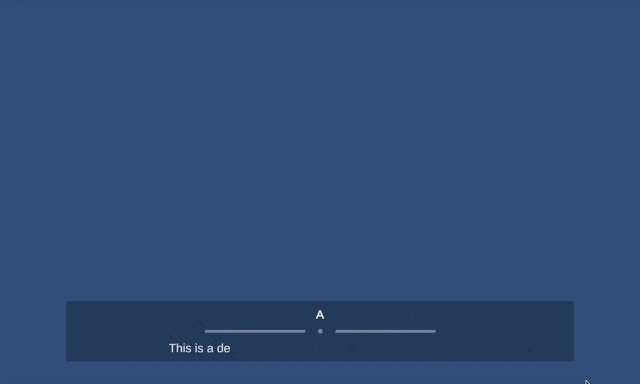

This example shows off the Automatic-Layout Dialogue Wheel, with an ever-increasing number of options being displayed. Once you've installed the package, find this example in Dialogue Wheel for Yarn Spinner/Examples/Automatic Layout Example.

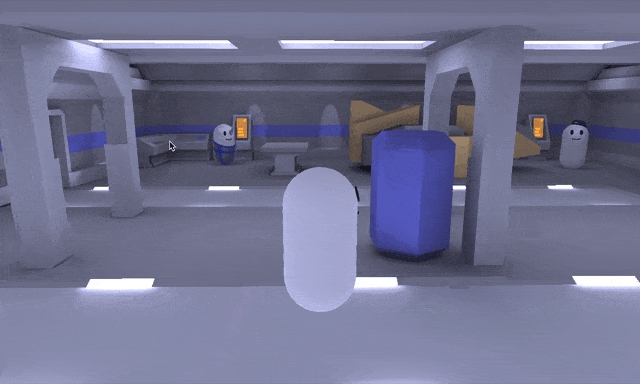

This example shows the Six-Segment Dialogue Wheel in action, with a very simple third-person sci-fi game. Once you've installed the package, find this example in Dialogue Wheel for Yarn Spinner/Examples/Six-Segment Example.
Learn how to use the Six-Segment Dialogue Wheel, from the Dialogue Wheel for Yarn Spinner Add-On Package.
The Six-Segment Dialogue Wheel provides a dialogue wheel with a light sci-fi appearance, and can display up to six responses for your dialogue. You can specify exactly which segment of the wheel each response is located.
To use the Six-Segment Dialogue Wheel , and the .
Then, create a new Dialogue Runner in your Hierarchy:
If prompted, click the Install TMP Essentials button to install TeshMesh Pro (TMP).
Make a folder to store your Narrative in the Project pane (ours is named Narrative), and then inside that folder, create a new Yarn Project asset:
Similarly, also in the Narrative folder, create a new Yarn Script to use:
Name both the Yarn Project and the Yarn Script something appropriate. Open the Yarn script to write your story. Then save the Yarn script and return to Unity.
We've provided an initial sample story here, if you want to test things out.

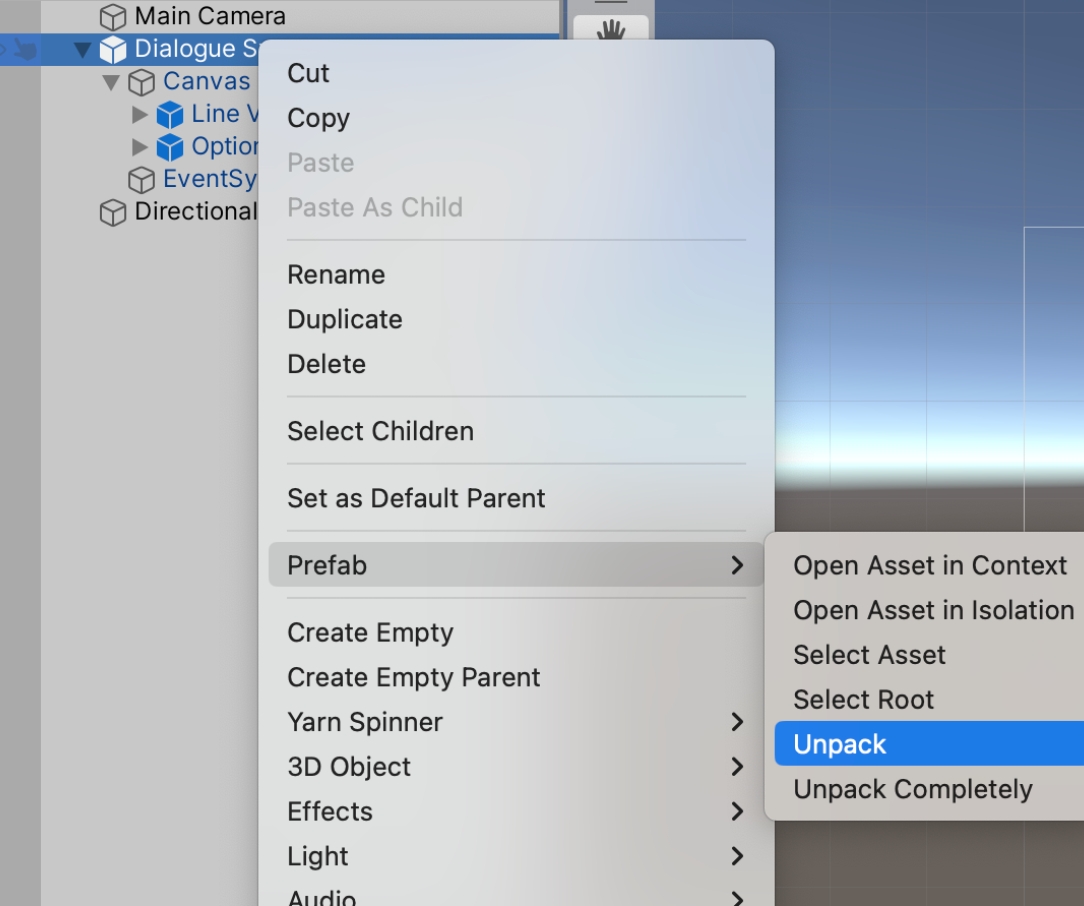

Back in Unity, choose the Dialogue Runner that you added to the Hierarchy, right-click it and choose Prefab -> Unpack.
Unpacking the Dialogue Runner prefab is exactly the same as creating your own empty GameObject and then adding Dialogue Runner and In Memory Variable Storage components to it.
This will allow you to modify the contents of the (former) prefab, in order to add the Six-Segment Dialogue Wheel as a Dialogue View.

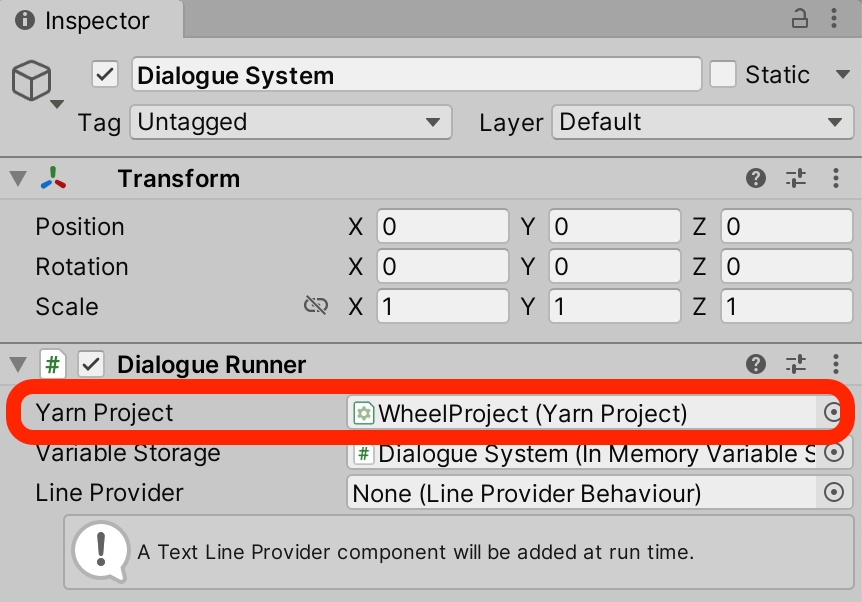

With the Dialogue Runner selected in the Hierarchy, drag the Yarn Project that you created from the Project pane into the Yarn Project slot in the Dialogue System's Inspector:
Next, locate the Six-Segment Dialogue Wheel prefab, supplied with this add-on, and drag it from the Project pane, so it's below the Canvas in the Hierarchy:
Right-click on the Options List View in the Hierarchy, and choose Delete. You won't need that view, as you'll be displaying a wheel instead of a list.

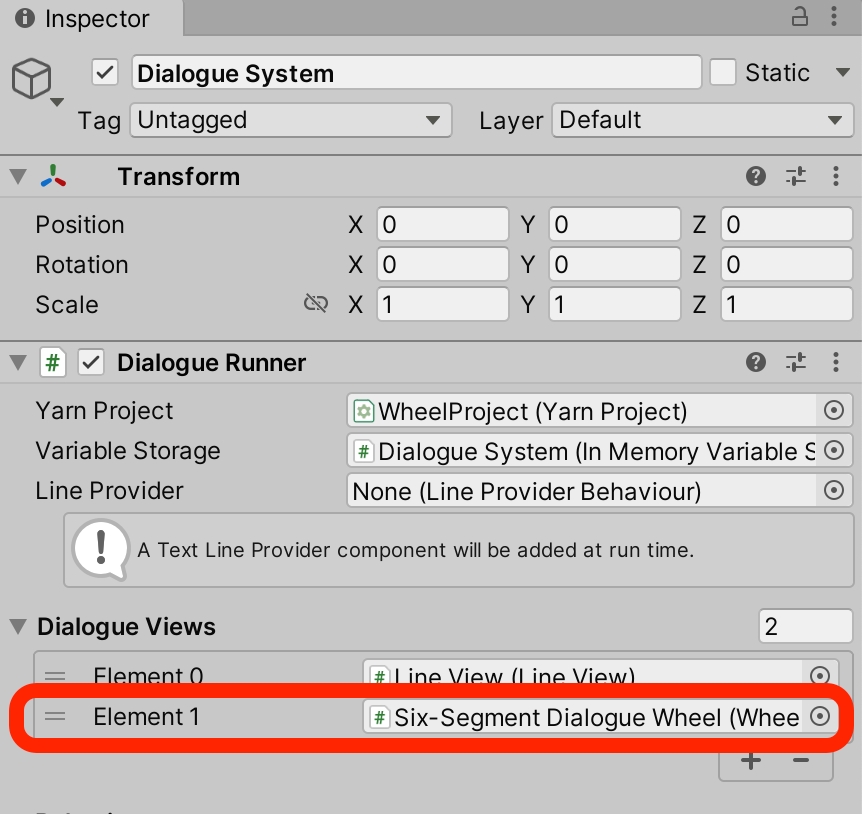

To make the Dialogue System aware of the Six-Segment Dialogue Wheel, select it (the Dialogue System) in the Hierarchy, and drag the Six-Segment Dialogue View from the Hierarchy into the Element 1 slot of the Dialogue Views section in the Inspector:
If you save your scene and run it, your Six-Segment Dialogue Wheel should now be working!
For example, the following Yarn script:
Results in this:

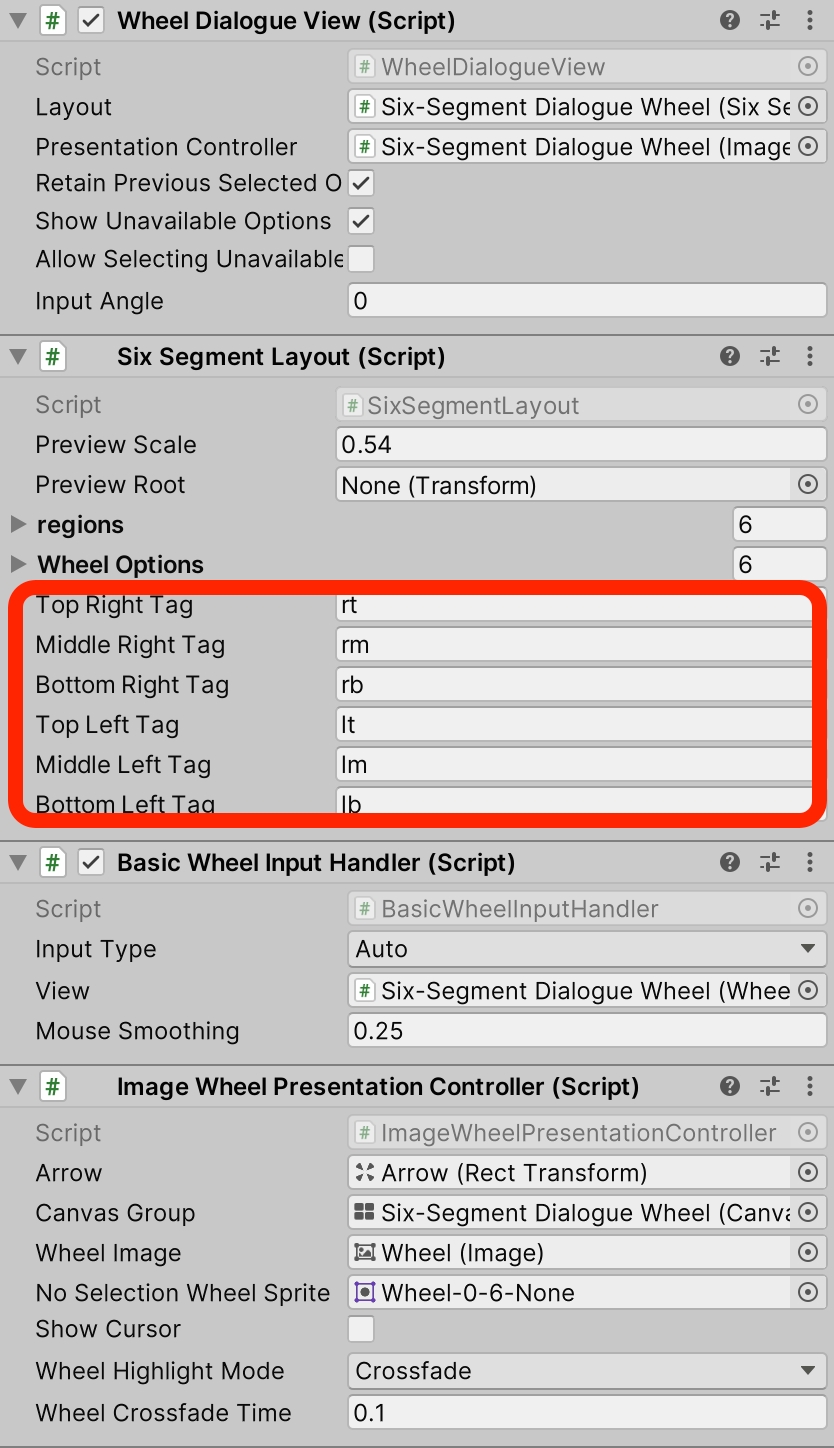

If you select the Six-Segment Dialogue Wheel Prefab in the Hierarchy (under Dialogue System), you can look to the Inspector to customise these tags, among other options:
You can also use the Yarn Command <<set-opt>> before each group of options in your Yarn scripts to specify how many options (limited to a maximum of three on either side) should appear in each column (left or right).
For example, the following Yarn Script:
Will result in this:
If you use set-opt to specify more options than the six-segment wheel can handle (i.e. a maximum of 3 options on each side), things may not work as expected
You can specify which position on the wheel your dialogue appears using . Specifically, you can add tags to each set of options to specify where in the wheel the option should be placed.
Review the , or check out the guide on .
The guide and documentation for the paid add-on, Dialogue Wheel for Yarn Spinner.
This Unity package provides two prefabs: Six-Segment Dialogue Wheel and Automatic-Layout Dialogue Wheel. The package requires Yarn Spinner for Unity.
This add-on is not part of the open source Yarn Spinner package, and can be purchased from the Yarn Spinner Itch.io Store:
Dialogue Wheel for Yarn Spinner provides an Automatic-Layout Dialogue Wheel and a Six-Segment Dialogue Wheel prefab. Both are customisable, powerful, and extremely flexible:
customise fonts, colours, and styles of wheels
enable and disable segments (Six-Segment Wheel)
specify specific segments for specific dialogue (Six-Segment Wheel)
theoretically unlimited options on the wheel (Automatic-Layout Dialogue Wheel)
works for 2D or 3D games
This guide provides documentation on using both prefabs.
The oldest supported version of Unity for the Dialogue Wheel is 2021.3.
The Six-Segment Dialogue Wheel provides a dialogue wheel with a light scif-fi appearance, and support for up to six segments, and the ability to specify exactly which of the segment positions is used for an option in your Yarn scripts.
To learn how to use the Six-Segment Dialogue Wheel, read this guide.
The Automatic-Layout Dialogue Wheel provides a dialogue wheel with a simple graphical appearance, and can—theoretically—support as many options as you'd like, automatically adjusting to display them. You cannot force an option to appear in a specific place on the wheel.
To learn how to use the Automatic-Layout Dialogue Wheel, read this guide.
