The Yarn language is a full programming language, which means it has support for writing code that let you control how the dialogue in your game works. In this section, you'll learn how to use variables to control your dialogue.
Variables store information. Variables can store one of three types of information: numbers, strings, and booleans.
Type | Possible Values | Examples |
---|---|---|
Every variable has a name. In Yarn Spinner, all variable names start with a dollar sign ($
).
Declaring a variable means telling Yarn Spinner that a variable exists, what it's meant to be used for, and what initial value it has.
To declare a variable, you use the <<declare>>
statement:
If you add a comment with three slashes ///
above a declaration, editor tools like the Visual Studio Code extension will use it to explain what a variable is when it's used elsewhere.
For example, here's a variable that has the following declaration:

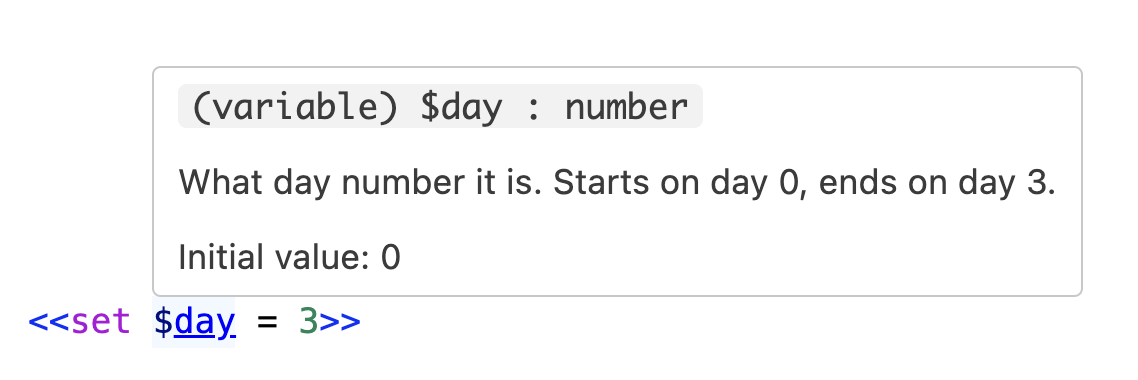

When you hover the mouse over it in Visual Studio Code, a popup will appear that shows the description:
If you use a variable without declaring it, Yarn Spinner will try to figure out what type it should have based on how it's being used in your scripts, as well as what initial value it should have - zero for numbers, false for booleans, and blank text for strings. When a variable is not declared, we call that an implicit declaration.
If you declare a variable, you can make sure that the type of the variable is what you intend it to be. Declaring a variable also lets you control what the variable's initial value is, and lets you add descriptive comments that explain the purpose of the variable to other people (or to your future self!)
You put information into a variable by using the <<set>>
command. For example, the following code puts a string, "Hello, Yarn!"
, into a variable called $greeting
:
As with node titles, variable names must not contain spaces. While they can contain a range of different characters the first character must be a letter. In general your variables will be made up of only letters, numbers and underscores.
Each variable can only store one type of value. Variables can change their value at any time, but they can never change their type.
For example, the following code will work:
This works because while the value of each of the variable changes, the type doesn't. However, the following code will not work:
In earlier versions of Yarn Spinner, variables could also be null
, which represented "no value". Starting with Yarn Spinner 2.0, variables are never null
. All variables are required to have a value.
You can work with the values inside variables. For example, numbers can be multiplied, strings can be added together, and boolean values can have logical operations (like and and or) applied to them. When values are used together like this, it's called an expression.
An expression needs to be a single type. You can't work with values of different types in a single expression. For example, the following code will not work:
Yarn Spinner provides built-in functions for converting between certain types:
The string
function converts values of any type into a string.
The number
function converts values of any type into a number (if it can be interpreted as one.)
The bool
function converts values of any type into a boolean value (if it can be interpreted as one.)
Yarn Spinner supports the following logical operators. Most of these have multiple ways being written:
Equality: eq
or is
or ==
Inequality: neq
or !
Greater than: gt
or >
Less than: lt
or <
Less than or equal to: lte
or <=
Greater than or equal to: gte
or >=
Boolean 'or'': or
or ||
Boolean 'xor': xor
or ^
Boolean 'not': not
or !
Boolean 'and': and
or &&
Addition: +
Subtraction: -
Multiplication: *
Division: /
Truncating Remainder Division: %
Brackets: (
to open the brackets and )
to close them.
Yarn Spinner follows a fairly standard order of operations, and falls back to using left to right when operators are of equivalent priority.
The order of operations is as follows:
Brackets
Boolean Negation
Multiplication, Division, and Truncating Remainder Division
Addition, Subtraction
Less than or equals, Greater than or equals, Less than, Greater than
Equality, Inequality
Boolean AND, Boolean OR, Boolean XOR
To show the contents of a variable, you put it inside braces ({ }
) inside a line. The value of that variable will appear in its place.
For example:
Yarn Spinner doesnโt manage the storage of information in variables itself. Instead, your game provides a variable storage object to Yarn Spinner before you start running dialogue.
When Yarn Spinner needs to know the value of a variable, it will ask the variable storage object youโve given it. When Yarn Spinner wants to set the value of a variable, it will provide the value and the name of the variable. In this way, your game has control over how data is stored.
The specifics of how variables need to be stored will vary depending on what game engine you're using Yarn Spinner in. To learn more about variable storage in Unity, see Variable Storage.
Number
Any whole or decimal number
1, 2.5, 3468900, -500
String
Any sequence of letters, numbers and other characters, enclosed in quotes.
"Hello", "โ", "A whole sentence."
Boolean
Either the value true or the value false.
true, false
